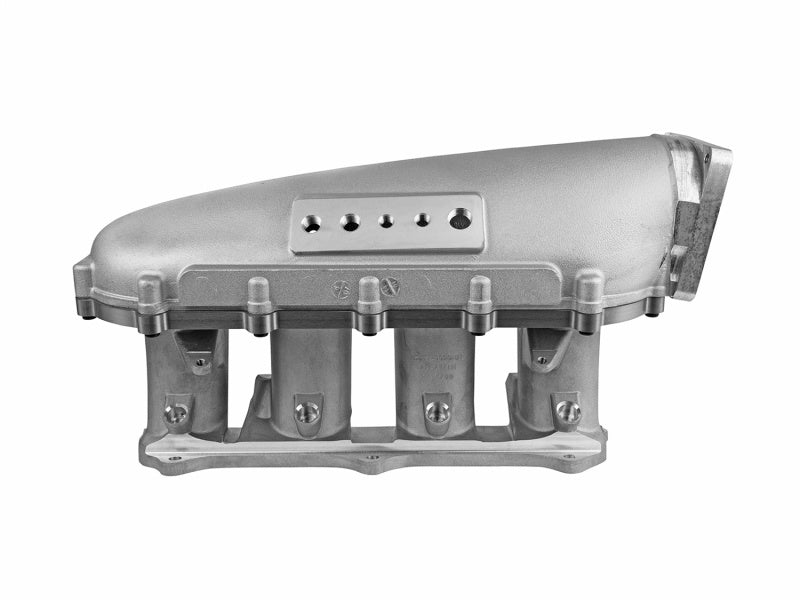

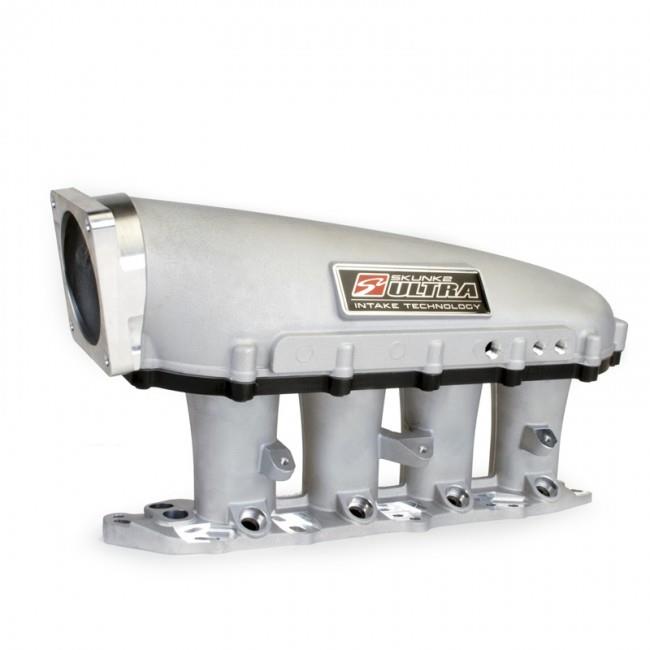

Skunk2 Ultra Race K Series Intake Manifold
Skunk2 Ultra Race K Series Intake Manifold
As of July 2025, Currently on backorder from Skunk2
Building a K powered car and need a manifold that has a throttle body pointing towards the transmission or the crank pulley? This Skunk2 Ultra race manifold offers flexibility to get your swap done!
You have a few options for accessorizing this manifold:
- Plenum volume
- Drive by Cable throttle body and adapter
- B series KPower 74mm TB and adapter
- K series Skunk2 Pro 74mm TB and adapter
- K series Skunk2 Alpha 74mm TB and adapter
Boy those are quite a few options, lets break it down!
Adding plenum spacers is generally needed for forced induction builds. If you have the space for them, the 1 liter spacer is recommended for 600hp builds, and the 2 liter spacer is recommended for 1000hp builds.
Just like this intake manifold, B series throttle bodies do not have idle motors built in to them. If you don't have room for a bulky idle motor to hang on the bottom of a K series throttle body or if you track/race your car, the engine vibrations may cause long term damage to the idle motor sooner than you think. In these cases we recommend our KPower idle motor relocation kit and to mount this plate to the chassis of your car. Be sure to use double ply rubber hose to ensure the line doesn't collapse.
We do recommend customers build braces to support this intake manifold from engine vibration. Be advised that for some applications where the throttle cable holder is positioned on the plenum, a custom bracket is needed. For a simpler install in general, we recommend our KPower intake manifold that has a throttle cable holder, idle motor mounting provision, and works with EP3 idler pulleys while also not requiring the water pump housing to be heavily modified.
The much anticipated Ultra Race Intake Manifold is the result of years worth of R&D and building upon the performance legacy of our Pro Series Intake Manifold. Using the latest in CFD (Computational Fluid Dynamics) software; Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. The result is a design that is less restrictive, yielding both torque and power gains well over many of the competitors.
Features:
- Modular 3pc. Design w/ Removable Plenum
- 3.5L Plenum Volume
- 90mm Throttle Body Flange - Std. 5.0L Ford Pattern
- Tapered Hi-Velocity Runners
- Raised Velocity Stacks
- Generously Cast Runner Walls for Porting
- Provisions Secondary Fuel Rail & Injectors
- Hi-Grade Mounting Hardware

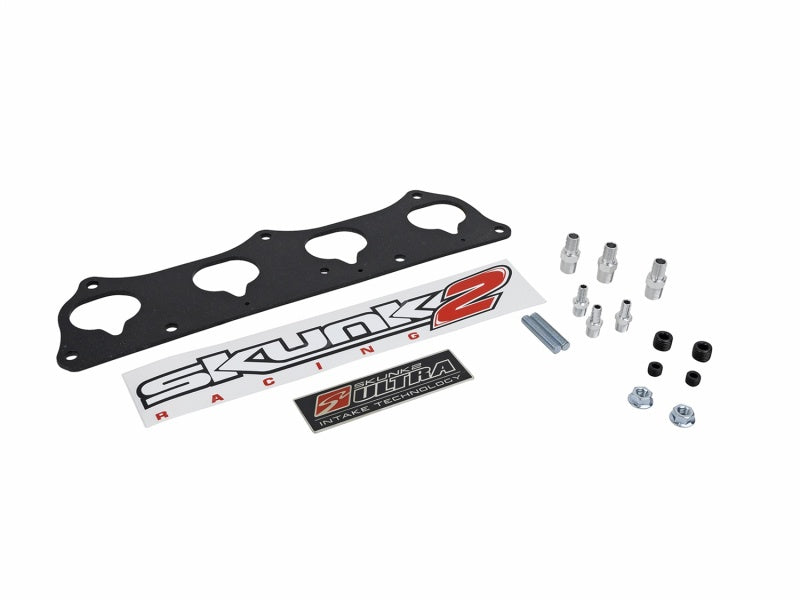

- Thermal Gasket Included
- Designed for RSX PRB style cylinder heads, and can be used on TSX/RBB/RBC cylinder heads with Tractuff Coolant Bypass adapter
Features and Benefits
- Available in 3.5L/4.5L/And 5.5L Configurations
- Optional Billet Aluminum Plenum Spacers In 1L Or 2L Sizes
- Hi-Grade Mounting Hardware
- US Patent No. D673977S
- 6.5 in. Tilted/Tapered Hi-Velocity Runners
- Raised 87mm Velocity Stacks - Plenty Of Material To Port
- Provisions For Additional Injectors On Bottom Side Of Runners
- 90mm Throttle Body Flange - Std. 5.0L Ford Pattern
- Includes Thermal Manifold Flange Gasket
- Generously Cast Runner Walls for Porting
- Fits ALL Popular Chassis Configurations - Not Just Race Cars
